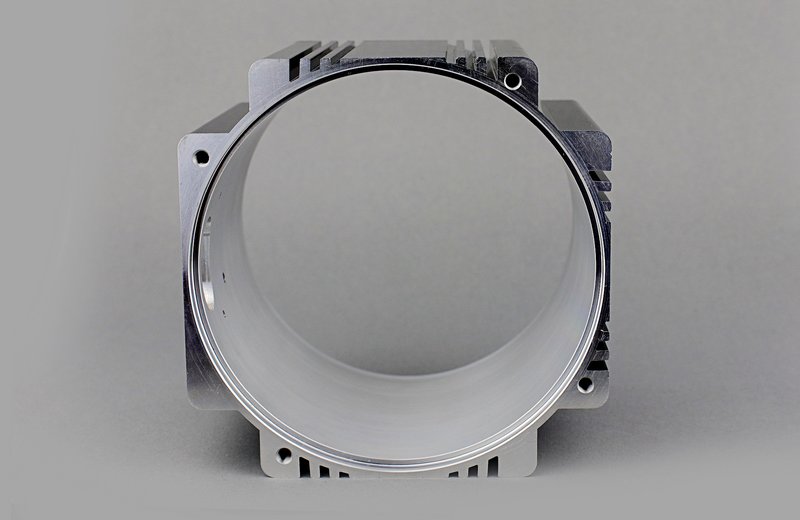

6063 Aluminum Extruded Motor Housing

Aluminum Extruded Motor Housing is mostly made of 6063 and other grades of aluminum alloy. After hot extrusion molding, it is light in weight, high strength, corrosion resistance, good heat dissipation performance, beautiful surface, inner hole concentricity ≤0.07mm, inner diameter free of cutting, etc.

Material: 6063 aluminum alloy
Cylindricity: 0.05mm
Machining parallelism of both ends: 0.02mm
Length tolerance: 0.05mm
Concentricity of two circles: 0.02mm
Surface treatment: electrophoresis or anodization
Overall dimension of motor housing: 130mm * 130mm * 123.5mm




6063 Aluminum Extruded Motor Housing, after hot extrusion molding, light weight, high strength, corrosion resistance, good heat dissipation performance, beautiful surface, inner hole concentricity ≤0.07mm, inner diameter free of cutting, etc.

   Henan Chalco Aluminum Co., Ltd. is an enterprise that produces aluminum extrusion motor housing, electric vehicle motor housing, water-cooled motor housing, servo motor housing, variable frequency motor housing, and has now developed into a large-scale modern enterprise with a capable scientific research Team, perfect process equipment, excellent testing methods and a complete set of quality assurance system.
